Product Line 2G Energy, Inc.

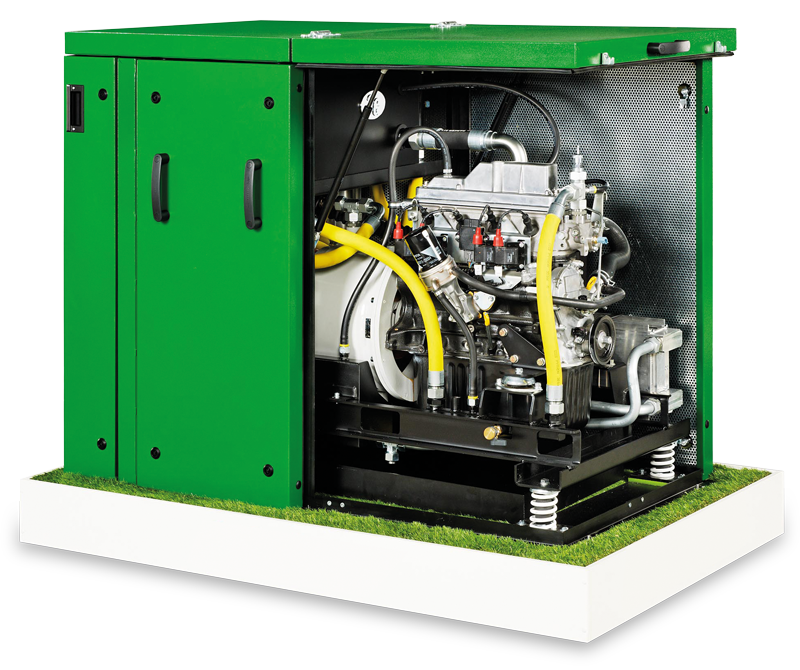

Small, profitable & quiet g-box 50
50 kW

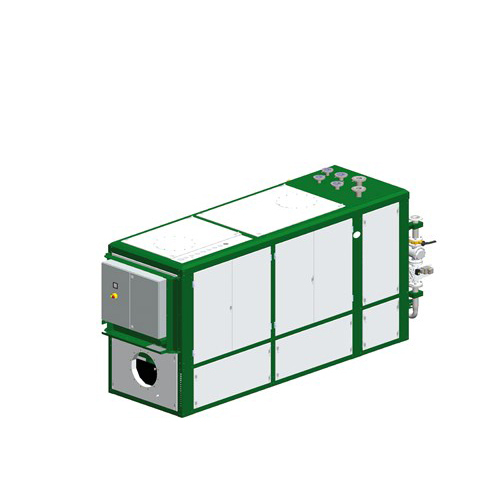

The g-box is 2G’s profitable small power plant with an electrical output of 50 kW. The connection-ready module includes a control cabinet with PLC controller. While the powerful unit works extremely efficient, the low noise output makes it suitable for various applications like hotels, offices or residential buildings.
- Connection-ready for easy integration
- Compact design requires minimal space for installation
- Super-silent and fully enclosed compact module (max 55 dB(A) at a distance of 3 ft)
- Very economical – highest thermal efficiencies through condensing technology
- Completely water-cooled – no need for costly installation of air ducts
- High availability, reliability and low-maintenance
TECHNICAL DETAILS
| Type |
Output |
Efficiency |
Total |
| electrical |
thermal |
electrical |
thermal |
Natural Gas |
| g-box 50 |
50 kW |
105 kW |
33.4 % |
68.4 % |
101.8 % |
Download Product Portfolio

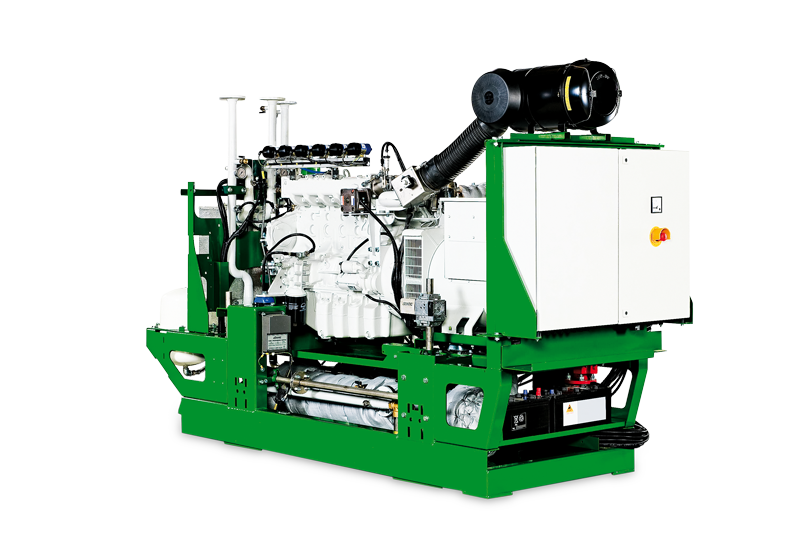

Compact Biogas Specialist filius
50 to 150 kW
As a highly efficient power plant ranging in output from 64 to 150 kW, the filius is specifically designed for smaller biogas plants. It is usually pre-assembled in a container as a connection-ready compact module and can be commissioned quickly and easily.
- Designed for smaller biogas plants
- Modules available in space-saving filius container
- Connection-ready container solution facilitates on-site installation and reduces installation costs
- Compact design enables easy access for maintenance work
TECHNICAL DETAILS
| Type |
Output |
Efficiency |
Total |
| electrical |
thermal |
electrical |
thermal |
Biogas |
| filius 104 |
50 kW |
73 kW |
33.4 % |
48.7% |
82.1 % |
| filius 204 |
64 kW |
90 kW |
34.9 % |
48.8 % |
83.7 % |
| filius 106 |
100 kW |
136 kW |
36.6 % |
49.8 % |
86.4 % |
| filius 206 |
150 kW |
192 kW |
35.9 % |
46.0 % |
81.9 %
|
Download Product Portfolio

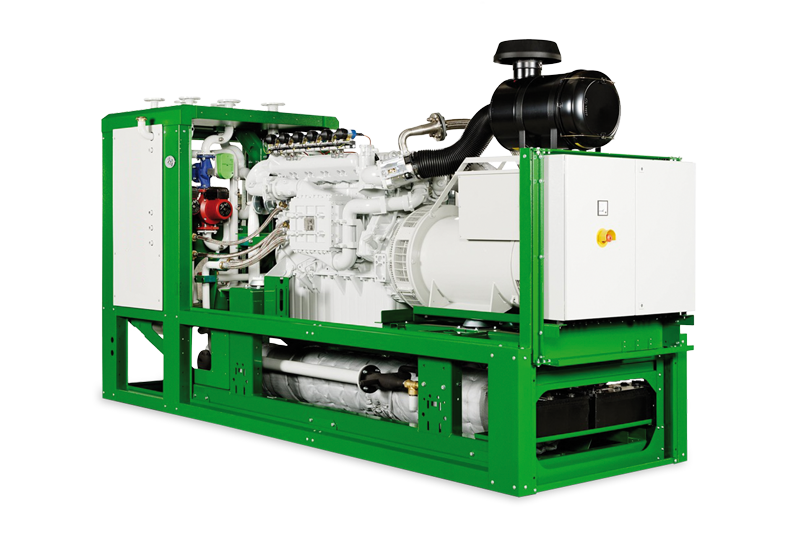

Traditional Solution patruus
95 to 500 kW
With engine technology that has been established for decades, the patruus is the most experienced member of the 2G power plant family. It is a resilient and efficient supplier of power and heat in the electrical output range up to 500 kW.
- Designed as a connection-ready compact module
- High plant availability due to established engine technology
- Available with both naturally-aspirated or turbocharged engines
- Modular design facilitates installation in hard to reach places
- Resilient and low-maintenance
- Available as a twinpack configuration with two modules per container for twice the power
 TECHNICAL DETAILS
| Type |
Output |
Efficiency |
Total |
| electrical |
thermal |
electrical |
thermal |
Natural Gas |
| patruus 100 |
100 kW |
143 kW |
35 % |
50.2 % |
85.2 % |
| patruus 160 |
160 kW |
244 kW |
36.1 % |
55.1 % |
91.2 % |
| patruus 200 |
200 kW |
280 kW |
35.3 % |
49.4 % |
84.7 % |
| patruus 265 |
265 kW |
415 kW |
35.6 % |
55.8 % |
91.4 % |
| patruus 280 |
280 kW |
373 kW |
36.5 % |
48.6 % |
85.1 % |
| patruus 400 |
400 kW |
541 kW |
37.1 % |
50.3 % |
87.4 % |
Biogas |
| patruus 100 |
100 kW |
136 kW |
36.6 % |
49.8 % |
86.4 % |
| patruus 190 |
190 kW |
235 kW |
36.8 % |
45.4 % |
82.2 % |
| patruus 250 |
250 kW |
319 kW |
36.4 % |
46.5 % |
82.9 % |
| patruus 370 |
370 kW |
473 kW |
37.1 % |
47.3 % |
84.4 % |
Download Product Portfolio

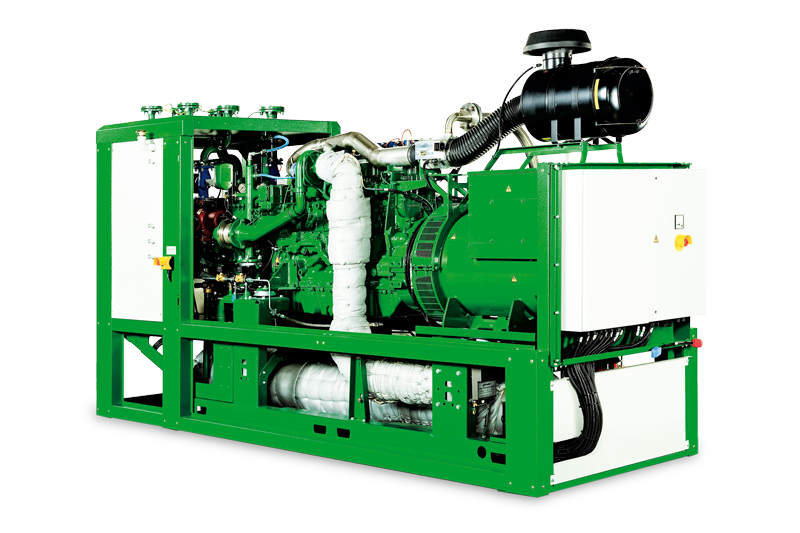

Evolution in Efficiency agenitor
110 to 500 kW
The agenitor by 2G is the result of intensive work by the 2G research and development team. Improving combustion chamber geometry has made it possible to increase the efficiency of the agenitor significantly.
- Highly efficient power plant with optimized gas engine – and therefore lower fuel costs
- Modular design facilitates installation in hard to reach places
- Very reliable even in regular start-stop operation thanks to highly wear-resistant engine components
- Resilient and low-maintenance
- Available as a twinpack confi guration with two modules per container for twice the power
 TECHNICAL DETAILS
| Type |
Output |
Efficiency |
Total |
| electrical |
thermal |
electrical |
thermal |
Natural Gas |
| agenitor 206 |
220 kW |
262 kW |
38.3 % |
45.7 % |
84 % |
| agenitor 306 |
250 kW |
297 kW |
38.8 % |
46.2 % |
85 % |
| agenitor 312 |
450 kW |
535 kW |
38.9 % |
46.2 % |
85.1 % |
| agenitor 408 |
330 kW |
350 kW |
40.6 % |
43.1 % |
83.7 % |
Biogas |
| agenitor 206 |
220 kW |
243 kW |
38.7 % |
42.7 % |
81.4 % |
| agenitor 306 |
250 kW |
272 kW |
39.1 % |
42.5 % |
81.6 % |
| agenitor 408 |
330 kW |
338 kW |
40.6 % |
41.6 % |
82.2 % |
| agenitor 212 |
400 kW |
473 kW |
38.6 % |
45.7 % |
84.3 % |
| agenitor 312 |
450 kW |
513 kW |
38.2 % |
43.5 % |
81.7 % |
Download Product Portfolio

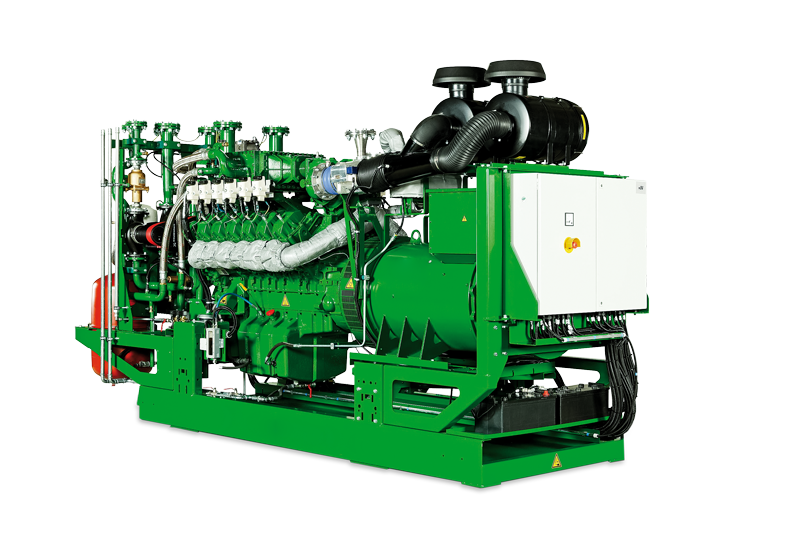

Built for Big Tasks avus
406 to 2,000 kW
The avus is a highly efficient 2G power plant for high electric power consumption (above 600 kW) which is used in larger industrial projects or for supplying micro grids. The modular built systems include all components and are easy to install.
- Interconnection of multiples units allows for higher electrical output. A Master Control system enables synchronization and load sharing to up to 5 modules.
- Efficient running mode and operating times due to excellent engine quality
 TECHNICAL DETAILS
| Type |
Output |
Efficiency |
Total |
| electrical |
thermal |
electrical |
thermal |
Natural Gas |
| avus 500c |
500 kW |
529 kW |
40.6 % |
42.9 % |
83.5 % |
| avus 600c |
600 kW |
722 kW |
41.1 % |
46.6 % |
87.7 % |
| avus 800c |
800 kW |
950 kW |
41.5 % |
46.3 % |
87.8 % |
| avus 1200c |
1,200 kW |
1,312 kW |
43.4 % |
43.2 % |
86.6 % |
| avus 1500c |
1,560 kW |
1,733 kW |
43.0 % |
43.8 % |
86.8 % |
| avus 2000c |
2,000 kW |
2,179 kW |
43.4 % |
43.2 % |
86.6 % |
Biogas |
| avus 500c |
|
|
|
|
|
| avus 600c |
600 kW |
642 kW |
40.4 % |
43.1 % |
83.5 % |
| avus 800c |
800 kW |
838 kW |
40.7 % |
42.7 % |
83.4 % |
| avus 1200c |
1,200 kW |
1,196 kW |
42.3 % |
41.7 % |
84 % |
| avus 1500c |
1,560 kW |
1,589 kW |
41.7 % |
42.1 % |
83.8 % |
| avus 2000c |
2,000 kW |
1,991 kW |
42.7 % |
43.2 % |
85.9 % |
Download Product Portfolio
Containerized Solutions
2G power plants can be installed in various ways – depending on local conditions and the requirements for sound insulation. They can therefore be incorporated in existing buildings or heating systems or can be set up separately in a container or engine room. With the appropriate sound insulation package, noise emission can be as low as 35 dB (A) at a distance of 10 m.
 |
 |
 |
 |

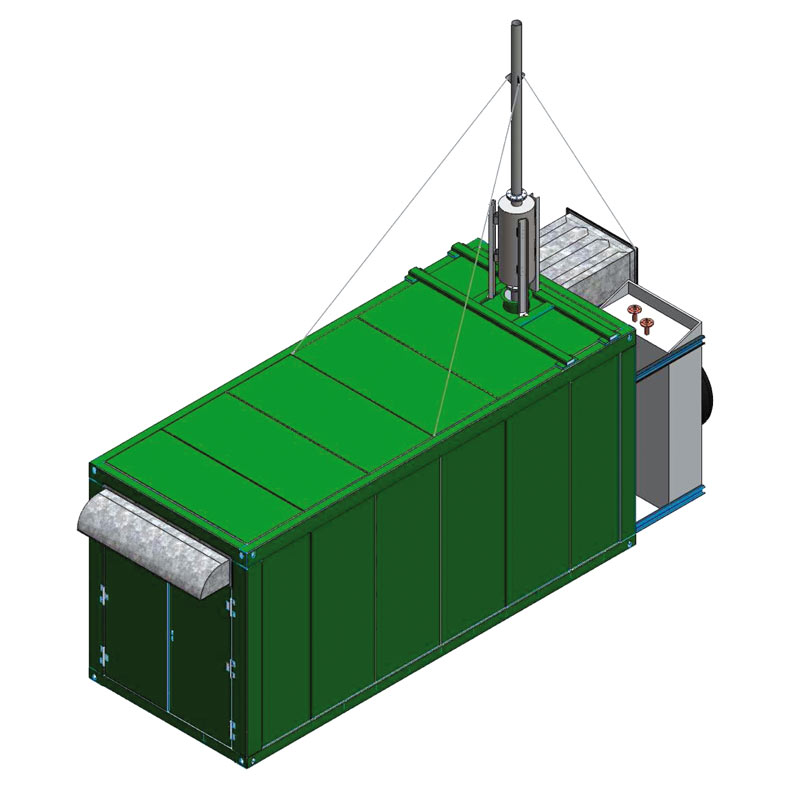

filius container
Sizes Available
19.7 ft x 8 ft x 9.2 ft
29.5 ft x 8 ft x 9.2 ft
|

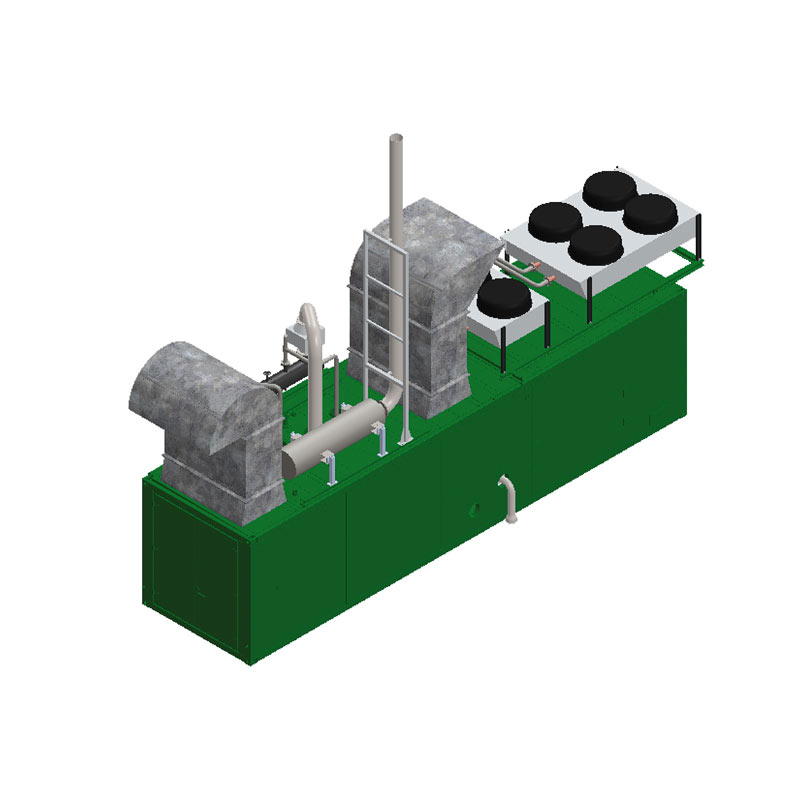

Standard container
Sizes Available
21.3 ft x 9.8 ft x 9.8 ft
29.5 ft x 9.8 ft x 9.8 ft
34.4 ft x 9.8 ft x 9.8 ft
39.4 ft x 9.8 ft x 9.8 ft
|

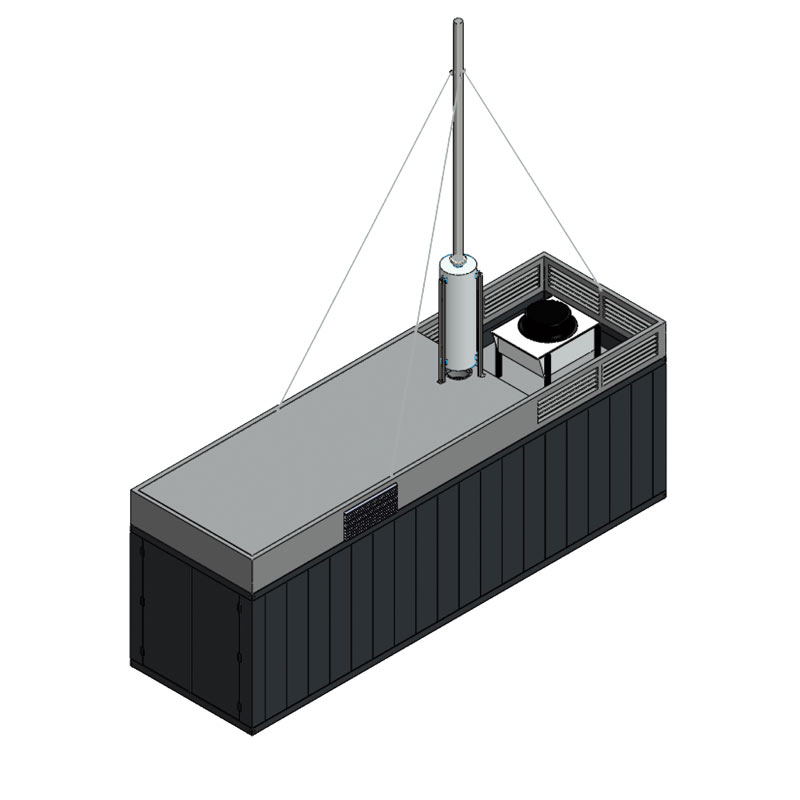

High Line container
Sizes Available
29.5 ft x 9.8 ft x 12.1 ft
34.4 ft x 9.8 ft x 12.1 ft
39.4 ft x 9.8 ft x 12.1 ft
39.4 ft x 14.1 ft x 17.5 ft
|

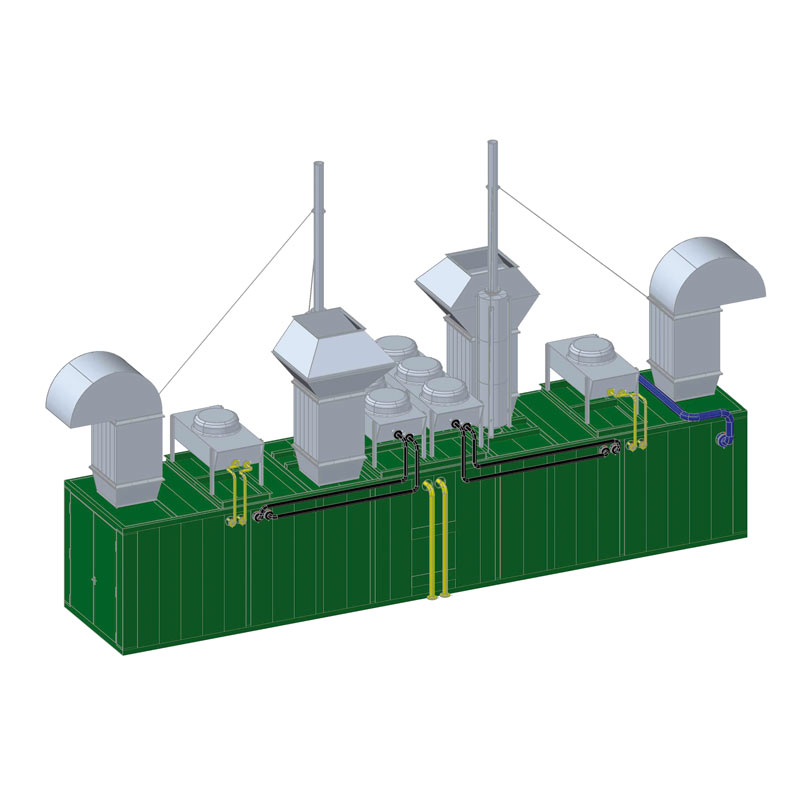

Container Twin Pack
Sizes Available
42.7 ft x 9.8 ft x 9.8 ft
49.2 ft x 9.8 ft x 9.8 ft
|
| Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 55 dB (A)
|
Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 52 dB (A)
|
Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 45 dB (A)
|
Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 52 dB (A)
|
 |
 |
 |
|

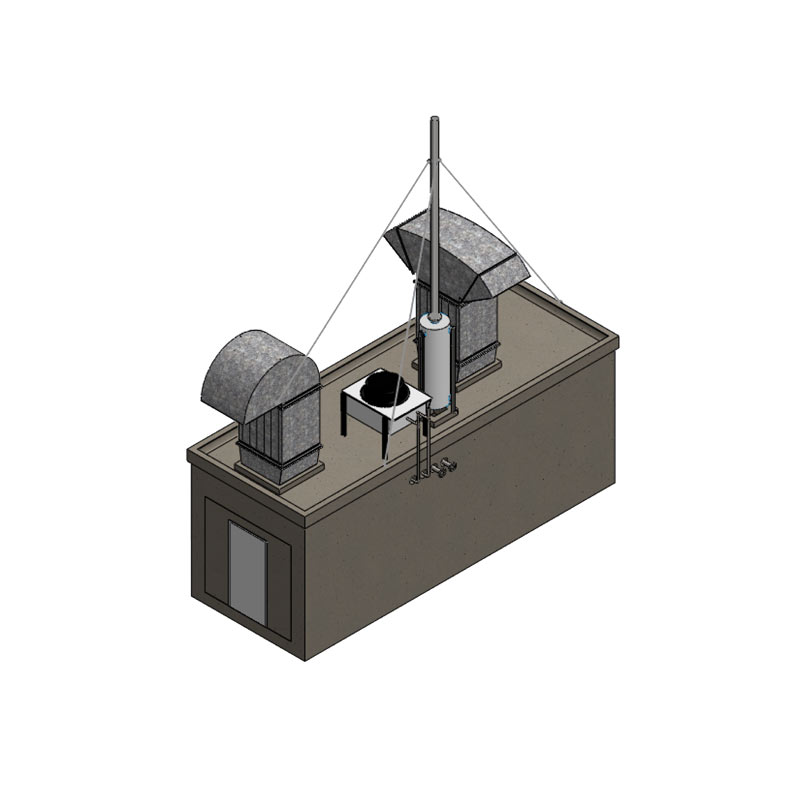

Standard concrete acoustic enclosure
Sizes Available
29.5 ft x 10.8 ft x 12.1 ft
30 ft x 14.1 ft x 12.1 ft
37.4 ft x 14.1 ft x 12.1 ft
|

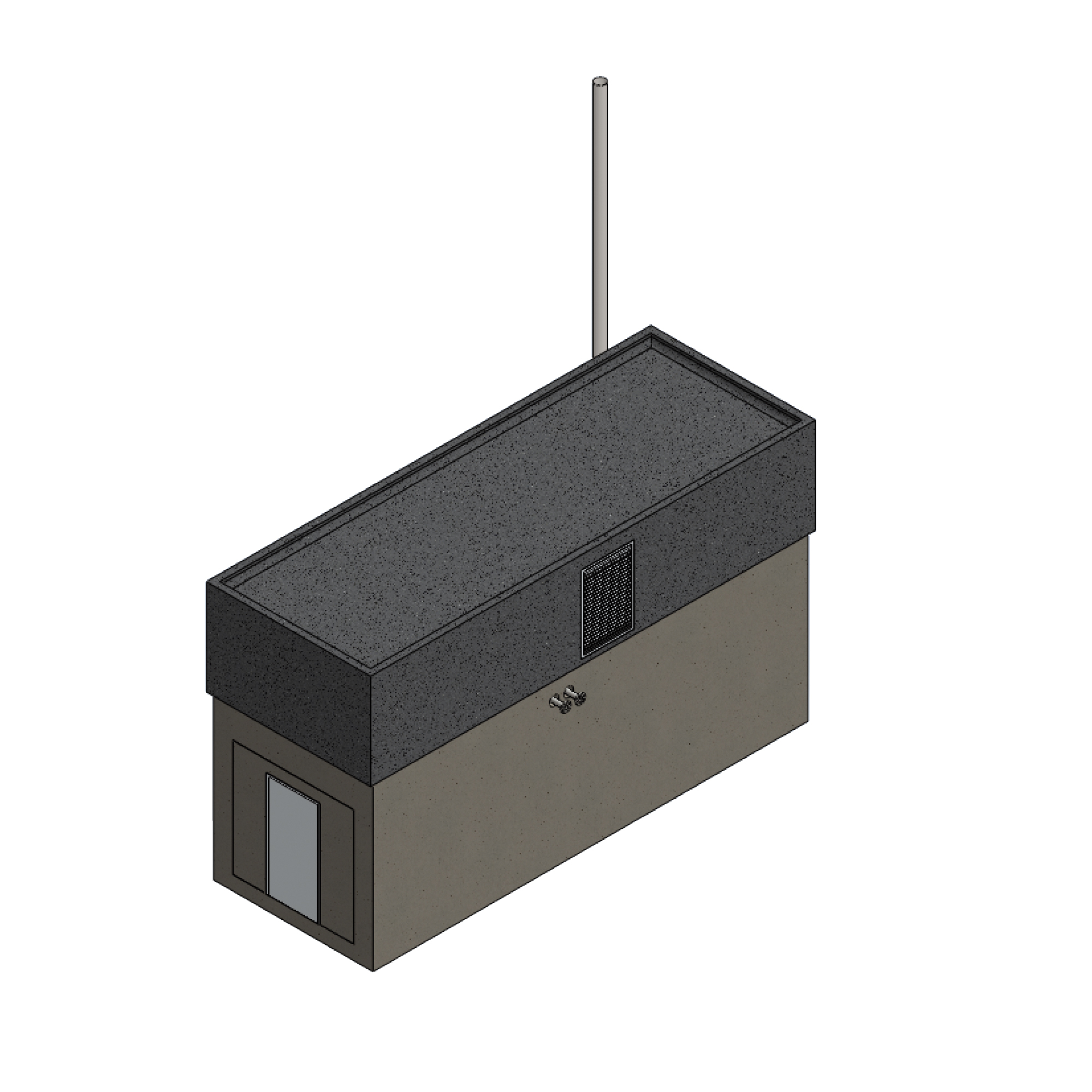

High Line concrete acoustic enclosure
Sizes Available
29.5 ft x 10.8 ft x 17.6 ft
30 ft x 14.1 ft x 17.6 ft
37.4 ft x 14.1 ft x 17.6 ft
|
Sound capsule
Sizes Available
Depending on product
|
Engine room
Sizes Available
Individual
|
| Acoustic Emissions
Standard: 45 dB (A)
Super silent: up to 35 dB (A)
|
Acoustic Emissions
Standard: 45 dB (A)
Super silent: up to 35 dB (A)
|
Acoustic Emissions
Standard: 65 dB (A)
|
Acoustic Emissions
Individual, up to 35 dB (A)
|
|
