Waste to Energy (Anaerobic Digestion)

by GP Green Energy Systems

Biogas
In 2018, GP Energy partnered with the eminent players from Poland and China in the field of Bio-Methanation of wet organic waste from biomass and sewage sludge.
It carefully 'Indianised' the technologies to suit the Indian market. The partners are already working in this field for past 10-15 years having hundreds of successful installations in Asia, Europe and Africa.

Biogas Plant

05.jpgBiogas is a gaseous fuel, it is the mixture of various gases produced by break down of organic matter by bacterial action in absence of Oxygen. Biogas mainly comprises of valuable Methane gas ( 50 to 70%) Carbon Dioxide (20 to 40%) and traces of Hydrogen Sulphide, Nitrogen and Oxygen having calorific value of about 21,000 Kj or 5000 Kcal per cubic meter of gas. The plant lowers Methane emission by entrapping and using as fuel.
Digestate sludge comes out in slurry condition and is an organic manure of high quality - completely natural and free from harmful synthetic chemicals

Process
Biogas plant consists of mainly Feedstock Pre-Treatment system, Anaerobic reactors, Desulphurization plant and gas storage device. The Reactor is equipped with stirring arrangement, heating & insulation facility, feeding & drainage systems, pressure & electrical controlling devices. Feed Preparation is as important activity, where sizing of the solids, pH value and carbon - nitrogen ratio have to be maintained before loading to the reactor, Methane (CH) in gas is produced in four steps:- Hydrolysis, Acidification, Acetic Acid formation and Methanation
Produced biogas is then passed through Desulphurization plant to remove H,S which is flammable and corrosive in nature, present in biogas. HS corrodes the pipeline and equipment and Sulphur Dioxide ( 50,), which forms after combustion of H,S is a harmful gas and pollutes the atmosphere. Hence Desulphurization is a must before any use of biogas. Dry chemicals, Wet chemicals or biological treatments may be adopted for this purpose, depending upon H,S content, biogas flow, efficiency etc. Thereafter clean biogas is stored in a specially designed Gas Holder.




Biogas Upgradation Plant

As value addition, biogas can be upgraded by removal of Carbon Dioxide, moisture and traces of other gases to achieve Methane gas pure up to 97%, which is as good as Natural gas.

By compressing and bottling the said gas, the same gas can be sold to the market as a substitute of Petrol, diesel or Compressed Natural Gas (CNG). A cubic meter of biogas gives approximately 0.6 cubic meter of Bio-CNG.

Process

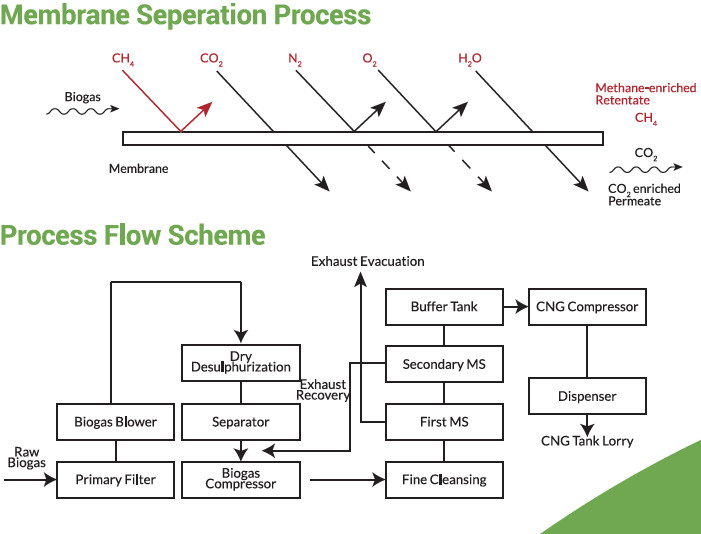

The key process for upgradation is Decarbonization or removal of Carbon Dioxide (CO2).

There are four types of technologies available: Chemical Absorption, Membrane Separations, Pressure Swing Adsorption and Pressurized Washing.

Among all, the most effective process is Membrane Separation (MS), where specially designed membrane is having macromolecule permeability for different gaseous components to get separated.


Feedstock

Any bio-degradable waste can be used as feedstock

Food Waste

  • Organic waste from MSW
  • Household and Community kitchen waste
  • Vegetable and fruit waste from market etc

Animal Waste

  • Cattle Dung
  • Chicken litter etc

Industrial Waste from

  • Sugar Mill. Distilleries Dairy
  • Paper & Pulp
  • Chemical
  • Pharmaceuticals Slaughterhouse etc

Crop & Argo Waste

  • Maize GrassLeaves
  • Bagasse Straw etc

Value Proposition

Biogas

  • Firing of stove, boilers, furnaces etc
  • Heating Cooling
  • Power generation
  • Upgradation to Bio-CNG

Bio-CNG

  • Fuel for Industrial use
  • Fuel for vehicle
  • Selling through gas grid

Blogas Plantat
cow farm, UK


Biogas plant for waste
water of palm oil mill
Dumai, Indonesia


Biogas Desulphurization
Plant, China


Biogas power Plant,
Sweden
